INTRODUCING THE ALL NEW Sepro Frontier Concentrator

Innovative new bowl geometry with a parabolic riffle profile.
KEY ADVANTAGES
  • 20% higher recovery on high-grade ore with coarse gold particles
  • 50% higher recovery on low-grade ore with fine gold particles
  • 47% reduction in cyclone overflow grade in industrial trials
APPLICATIONS
  • A arcu cursus vitae congue mauris rhoncus aenean vel elit
  • Enim nunc faucibus a pellentesque sit amet porttitor
  • Posuere sollicitudin aliquam ultrices sagittis
Download Brochure
JUMP TO:

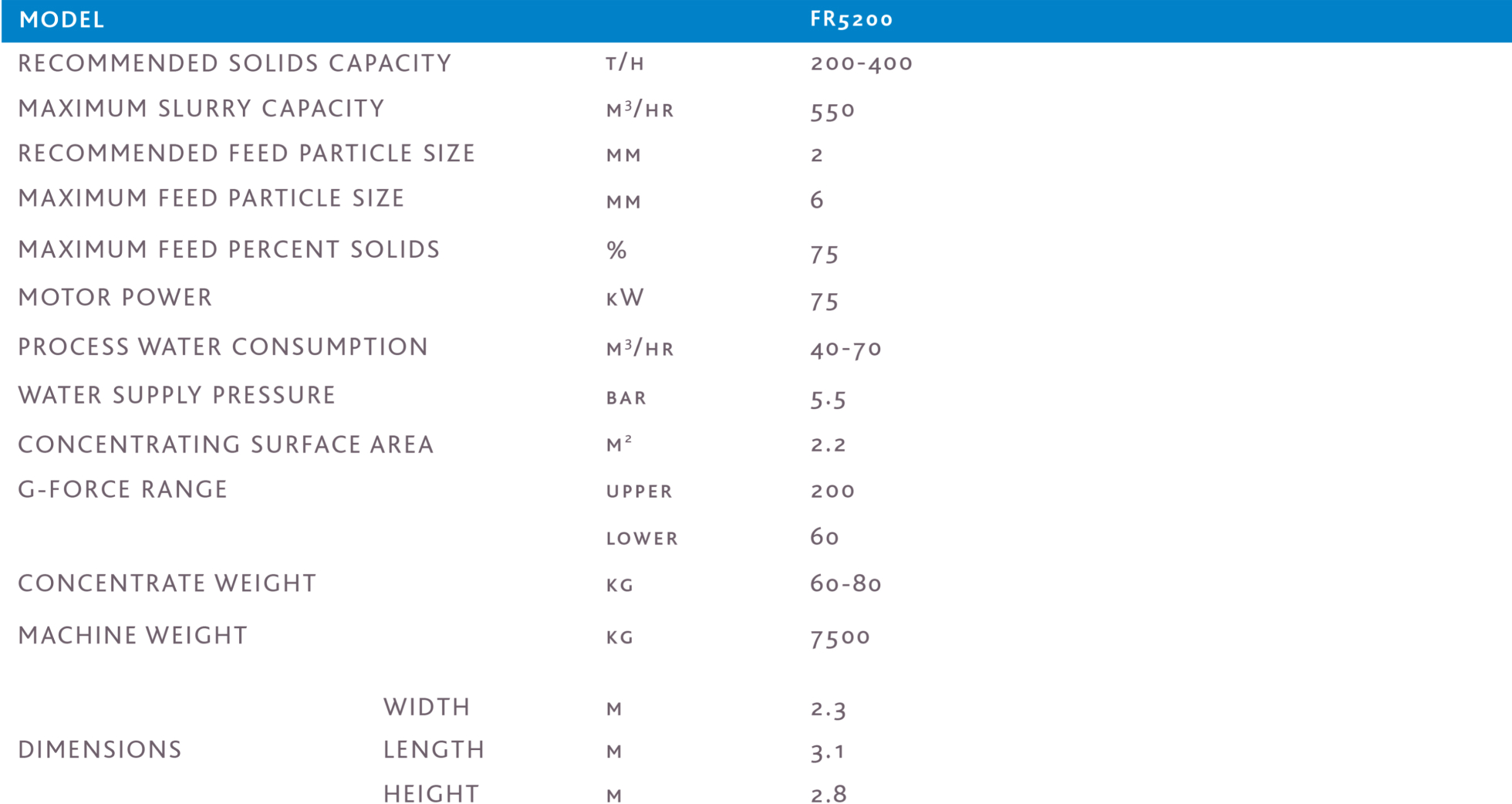

Technical Papers Specifications Automation FAQs

Request Information

Contact a Sepro Expert today.

Product Overview

The Sepro Frontier bowl achieves significantly higher gold recoveries than the Knelson™ and the Falcon bowl under many test conditions.

Whether you’re looking to recover coarse gold particles or fine gold, the Frontier bowl is likely going to immediately improve your operation’s output.

The Sepro Frontier utilizes the concentration mechanisms from both the Knelson™ and Falcon concentrators. This makes the Sepro Frontier Bowl a superior choice in many mining operations.

Download Comparison Data

How does it work?

The concept behind the parabolic riffle profile was to create a bowl with riffles on both sides of the dynamic slurry face. We wanted a smooth path for slurry flow up the bowl wall. The bottom riffles begin with a relative angle of 30 degrees and progressively decrease in angle until the top riffles are vertical.

The bottom riffles are exposed to the slurry flow, creating an eddy current zone of high turbulence. The top riffles are not directly exposed to the slurry flow, creating a non-turbulent zone of particle separation and recovery. In between is a transition zone where the angle of the bowl wall is equal to the angle of the dynamic slurry face.

This design dramatically improves overall gold recovery across a range of ore types, gold grades, and particle sizes.

If you care about gold
recovery, you don’t want to miss this.

INCREASE YOUR GOLD RECOVERY

Have You Ever Wondered?

There have been anecdotal reports that the Knelson™ recovers more coarse gold particles, and the Falcon recovers more fine gold particles. Previously, no one has published any rigorous, controlled experiments at the industrial scale to determine the relative performance of these two types of gold centrifuges for both fine and coarse gold.

What if you could perform better for both?

GET THE STATS

Learn from an expert

Watch the breakdown of our
whitepaper by
Andrew Gillis, PhD

Improve Your Operations with Minimal Hassle

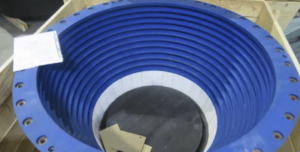

Sepro produced a Frontier™ bowl that fit as a direct replacement part in a Knelson™ XD48 gravity concentrator. The bowl was installed at a gold mine in North America currently operating two Knelson™ XD48 gravity concentrators with the standard Knelson™ riffle profile.

Here’s what we found.

Tests were run on each bowl over two days, using the standard plant settings for feed rate, bowl speed, fluidization flow rate, and concentration cycle times. The standard Knelson™ bowl achieved a cyclone overflow grade of 11.0 g/t Au while the Sepro Frontier™ bowl reduced the cyclone overflow grade to 5.8 g/t Au, a 47% improvement. This resulted in a 3x improvement in gravity gold recovery.

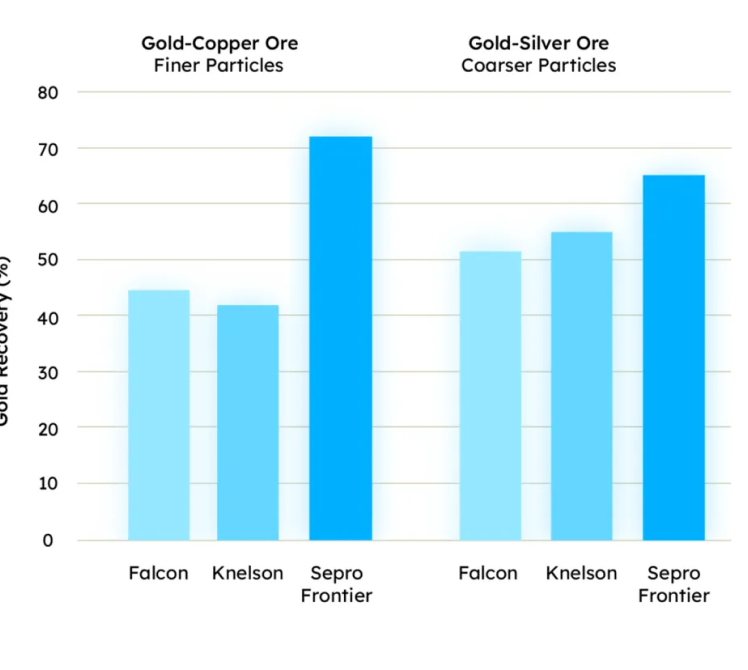

In pilot testing, we also observed 20% higher recovery on high-grade ore and 50% higher recovery on low-grade ore.

The Frontier™ bowl achieved these recovery improvements under all test conditions. From this information, we can infer that combining both concentration mechanisms (along with a smooth transition zone) dramatically improves overall gold recovery across a range of ore types, gold grades and particle sizes.

Based on the significantly higher performance of the Frontier™ bowl, it is a clear choice to use over any competing designs in the market.

Here are some of the benefits of the Frontier bowl as compared
to traditional bowl profiles

KEY ADVANTAGES
  • 20% higher recovery on high-grade ore with coarse gold particles
  • 47% improvement in industrial trials, reducing cyclone overflow grade from 11.0g/t Au to 5.8 g/t Au
  • 50% higher recovery on low-grade ore with fine gold particles
  • Improved gold recovery from 18% to 54%, a relative increase of 300%
Download the full whitepaper
“We’re always asking ‘how can we be better’? When someone has an idea for a small change that’ll help, we make those small changes. It adds up to big improvements.” — Quality assurance employee
“When we called, Sepro responded immediately. While every start-up has its challenges, Sepro helped us through them and into steady production in record time. The ease of start-up and shut-down of the mill has allowed for greater scheduling flexibility, and more efficient new operator training.” — Mine operations manager, North America
“When we called, Sepro responded immediately. While every start-up has its challenges, Sepro helped us through them and into steady production in record time. The ease of start-up and shut-down of the mill has allowed for greater scheduling flexibility, and more efficient new operator training.” — Mine operations manager, North America

Increase your gold recovery today.

Speak to an expert
PAPER

Sepro Frontier Bowl Full Whitepaper

READ PAPER
PAPER

Sepro Frontier Bowl Comparison Data

READ PAPER
